You can download the necessary documents to seamlessly integrate our products into your projects from the link below.
CORNER CONNECTIONbr>br> It is installed such that the panel's borders are not visible when the cabin system revolves. The shape with rounded edges helps to maintain cabinet harmony.
HINGE
The doors are equipped with an ABS system and a security screw that allows them to automatically close. The inside of the cabin is hidden due to the sharing on the panel that the door will push.
LOCK
If the cabinet is full is shown by the colored mechanism (red-green) on it. It has a matte anodized aluminum profile latch, twisted body, and arm
LEG
They’re compatible with both 12 mm and 18 mm HPL pannels. Body is produced with matte anodised aluminum.
TOP PANEL CONNECTION
On the bottom of the system, on the front and side edges, a matte anodized aluminum top profile is mounted. It aids in the adaptation to all types of sloping slopes in wet areas.
U CONNECTIONbr>br> The edges of the panel are not visible when the system spins. It contributes to the system's stability by grabbing the panel from both sides.
PROXLINE – PRODUCT DETAIL
Product Description

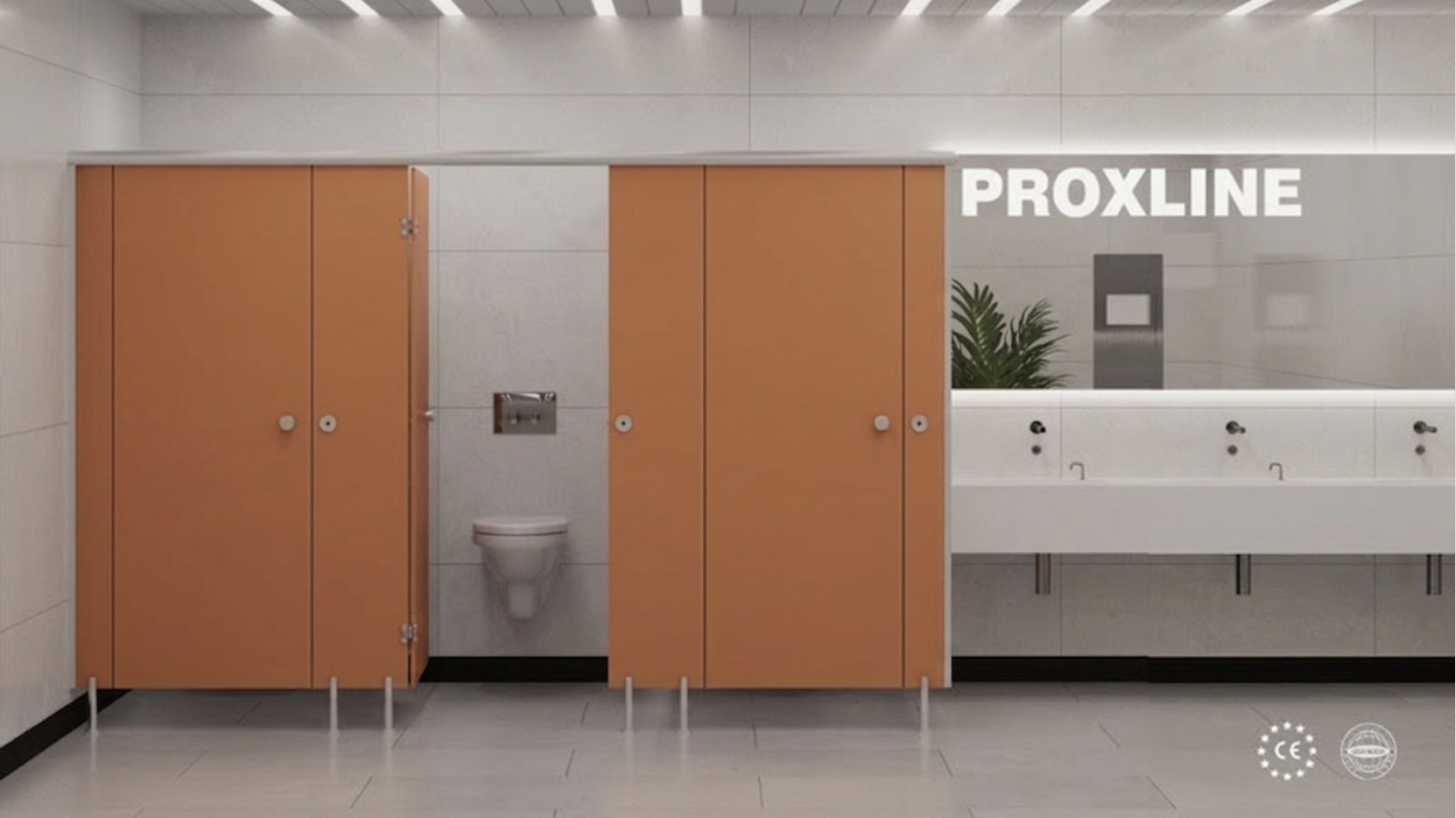

Proxline is a professional WC cubicle system developed with SANDER manufactured Core N and Core X compact laminate panel infrastructure. Designed for intensive use, it is confidently preferred in schools, hospitals, shopping malls and public projects. Its modular installation structure, high mechanical resistance and long-term durability provide reliable performance. All design and connection details are manufactured in accordance with SANDER engineering principles.
Price Information
60 € – 95 € / m²
Pricing may vary depending on project dimensions, total quantity, panel selection (Core N / Core X) and hardware details. Final pricing is determined after project-based quantity analysis.
Warranty
Proxline WC cubicle systems are covered by a 3-year manufacturer warranty.
The warranty includes production-related material and workmanship defects.
Installation in accordance with technical principles is recommended.
Delivery Time
Production and delivery time varies between 3–10 working days depending on project quantity.
For high-volume or specially detailed projects, scheduling is planned separately.
Return Policy
As this product is manufactured based on project-specific measurements and production, it is not subject to standard return conditions.
All dimensions, details and hardware selections are confirmed before production begins.
Technical Specifications
Panel Type: Core N / Core X compact laminate
Panel Thickness: 12 mm / 13 mm
Panel Density: ~1400 kg/m³
Bending Strength: ≥ 80 MPa
Modulus of Elasticity: ≥ 9000 MPa
Water Absorption (24h): ≤ 5%
Hardware: Aluminum profiles and connection components
Usage Condition: Suitable for wet areas and high-traffic environments
Areas of Use
Hospitals and healthcare facilities
Shopping malls and commercial buildings
Schools, universities and dormitories
Sports facilities and swimming pools
Industrial facilities and factories
Public and municipal buildings
System and Application Structure
The Proxline system is designed with a modular installation principle. Panel joint details are developed to enhance rigidity and structural stability. It provides high resistance against water, humidity and impact under wet area conditions. Long-term durability and technical safety are prioritized.
Project Process
Project and quantity analysis
Finalization of panel and hardware selections
Preparation of AutoCAD details and technical specifications
Production planning
Shipment and installation
Technical Documentation and File Access
Technical documents supporting the project process are provided for this product:
AutoCAD drawing files
Technical specifications
Shop drawings and application details
Catalogues and system diagrams
Maintenance and Cleaning
Compact laminate surfaces are resistant to water and humidity.
pH-neutral cleaning products are recommended.
Abrasive chemicals and surface-scratching equipment should be avoided.
